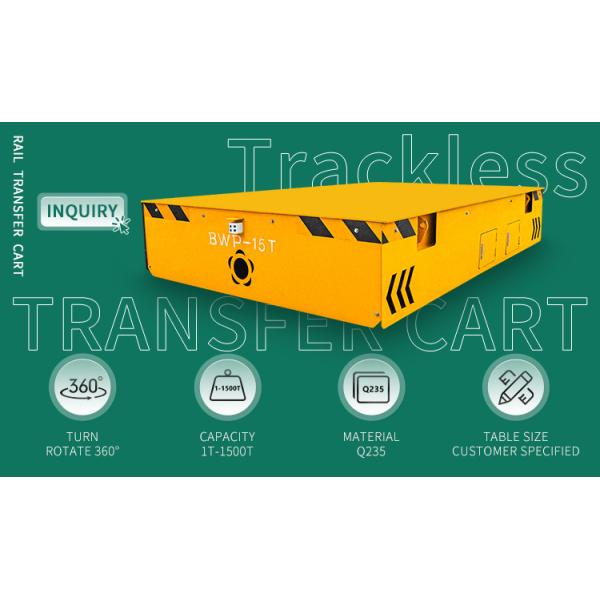

25t Load Capacity Steel Factory 4 PU Wheels Trackless Transfer Fat Electric Cart
Introduction
25T load capacity steel factory 4 pu wheels trackless transfer fat electric cart adopts crane beam box structure, steel plate CNC cutting, intelligent robot welding. The wheels are made of solid cast steel and covered with polyurethane glue, which can reduce the height of the whole trackless transfer cart and thus ensure the smooth operation. The trackless transfer cart adopts a balance beam or a support to assist its flexible turning. Dual drives are used to increase the power of the trackless transfer cart during operation. The trackless transfer cart handle and wireless remote control are used for dual control, and the handle is equipped with a direction rocker, which makes the control easier and more flexible. The table top can be equipped with anti-skid rubber sheet or wooden board, so as to protect the safety of the workpiece and prevent the workpiece from directly contacting the trackless transfer cart body and causing damage to the workpiece.
Application
The trackless transfer cart has a flexible body and can operate in complex environments or small spaces. That is, it can handle conventional items such as molds and machine tools, as well as coil steel, metal pipes, liquid raw materials and other items. According to the different uses of the industry, the trackless trolley can also be used as a carrying platform, carrying a variety of machine tools, consoles and other professional equipment as a mobile operation platform.
Product Features
1, Load capacity of trackless transfer cart is 1-1500tons;
2, Running distance of towing flat cart is not limited;
3, Trackless transfer cart can rotate 360 degrees, turn flexibly;
4, Operation system of towed trackless transfer cart is low voltage 36V power;
5, Trackless transfer cart can be used in anti-explosion, anti-high temperature, flammable environment;
7, Trackless transfer cart has following advantages, such as easy operation, simple structure, low price, long service life, etc.
Parameter List
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-100T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 100 |
| Table size | length(L) | 2000 | 2300 | 2400 | 3500 | 5500 | 6600 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2600 | 3000 |
| Height(H) | 450 | 500 | 600 | 700 | 800 | 1200 |
| Wheel Base (mm) | 1080 | 1650 | 2800 | 1650 | 2000 | 2000 |
| Axle Base (mm) | 1380 | 1850 | 1435 | 2700 | 2850 | 4000 |
| Wheel Diameter(mm) | Φ250 | Φ400 | Φ350 | Φ450 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 2*1.2 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 40 |
| Battery Capacity(Ah) | 250 | 250 | 400 | 450 | 500 | 1000 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 2.5 | 2.8 | 2.2 | 2 | 2.5 | 1.9 |
| Running Distance for one Charge(Km) | 3 | 3.4 | 2.7 | 2.4 | 3 | 2.3 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.9 | 6.8 | 8 | 26.8 |
About us
Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacturing material handling and lifting equipment with ISO9001, CE, SGS and SASO certificates. We can produce 1-500 ton seven series transfer carts and covers more than 90 products. Meanwhile, we are also a professional manufacturer of various electric winches and rail wheels, and a experienced supplier of GB standard rail track.
After Sale
Q&A
1.Q: Whether the towing flat cart can be customized?
A:Yes. all towing flat carts can be customized as per customers’ requirement.
2.Q: How to operate the towing flat cart?
A: Please don’t worry, dear. English user manual, parts manual will be delivered with your goods together. Our engineer will go to your factory to provide technical guidance if necessary.
3.Q: How to guarantee the quality of towing flat cart?
A: Towing flat cart will be tested before delivery, and quality certification will be sent you to check when dispatch. You can visit our factory and test it by yourself, or let third-parties to do the inspection for you.
4.Q: How about delivery time?
A: Generally speaking, the delivery time is 45 days, and it depends on quantity and products requirement, we will try our best to deliver it as soon as possible.
5.Q: How about payment term?
A: Generally speaking, 50%T/T deposit in advance, the balance 50% is paid by T/T before dispatch. 30% T/T deposit in advance, the balance 70% is paid by T/T before dispatch also can be accepted.
6.Q: If meeting urgent demand, what should I do?
A: Please do not hesitate to let us know before making order, we will try our best to shorten period on the basis of guaranteeing quality and prioritize your productions’ manufacture.
tags:steel factory handling trailer,steel factory rail trailer
|
|
25t Load Capacity Steel Factory 4 Pu Wheels Trackless Transfer Fat Electric Cart Images
|
