15 Tons Capacity Electric Trackless BWP Series Battery Material Transfer Car
The 15 tons capacity electric trackless bwp series battery material transfer car can transport goods without rails, and can be transported from one factory to another. If the management personnel are busy, it can also transport the goods by itself. The trackless transfer car can go straight or turn, which enhances the convenience of regional transportation. It solves the troubles of many enterprises about transporting items to different locations. The frame of the trackless transfer car is a welded steel plate frame according to the amount of goods transported by the customer. The wheels are made of polyurethane wheels, which will not cause damage to the road. It adopts DC drive, which has large bearing capacity, small turning radius and flexible operation. The size of the trackless transfer car deck can be customized according to the goods being transported.

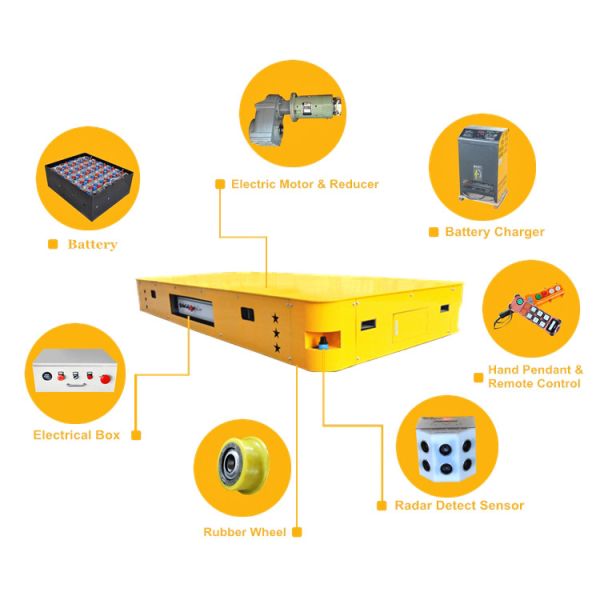

Parts Details
Features
1) The biggest difference from the rail transfer car is that the operation is not restricted by the rail, and it can turn and run freely.
2) It can adapt to the drop road surface inside and outside the workshop. It can also run on slightly undulating roads.
3) Support various operation modes to realize straight, lateral, turning, oblique, and in-situ rotation.
4) The operation is simple and easy to use, and only simple training can be used to skillfully use the trackless transfer car.
5) Battery powered, clean and energy-saving, no pollution.
6) Good safety, with the function of parking in case of obstacles, it can automatically slow down and stop when it senses obstacles.
7) It can realize automatic operation, support path tracking, support remote control, and reserve the host computer interface. Provides a communication protocol.
Optional Accessories
1. The load capacity, table size can be customized according to customer needs;
2. Optional explosion-proof, high temperature requirements.
3. Optional automatic stop and limit limit device when encountering people;
4. Optional on-board operation, fixed point operation, radio remote control, etc.
5. Optional frequency converter stepless speed regulation.
Shipping
Parameter List
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-100T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 100 |
| Table size | length(L) | 2000 | 2300 | 2400 | 3500 | 5500 | 6600 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2600 | 3000 |
| Height(H) | 450 | 500 | 600 | 700 | 800 | 1200 |
| Wheel Base (mm) | 1080 | 1650 | 2800 | 1650 | 2000 | 2000 |
| Axle Base (mm) | 1380 | 1850 | 1435 | 2700 | 2850 | 4000 |
| Wheel Diameter(mm) | Φ250 | Φ400 | Φ350 | Φ450 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 2*1.2 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 40 |
| Battery Capacity(Ah) | 250 | 250 | 400 | 450 | 500 | 1000 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 2.5 | 2.8 | 2.2 | 2 | 2.5 | 1.9 |
| Running Distance for one Charge(Km) | 3 | 3.4 | 2.7 | 2.4 | 3 | 2.3 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.9 | 6.8 | 8 | 26.8 |
|
|
