High Quality 20t Mold Transport Electric Trackless Intelligent Cart

Product Categories
Xinxiang New Leader Machinery Manufacturing Co., Ltd
Contact Now

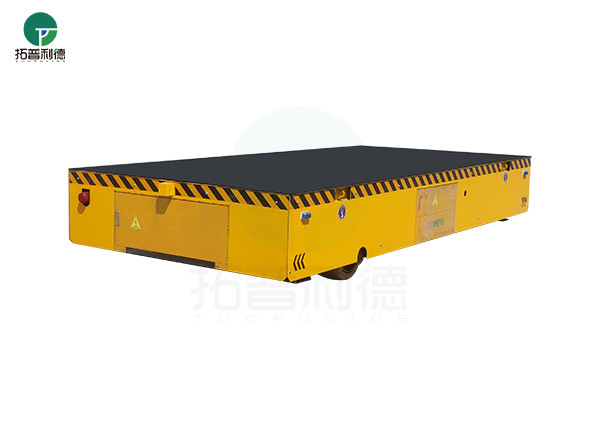

High Quality 20t Mold Transport Electric Trackless Intelligent Cart

Brand Name : Topleader

Model Number : BWP

Certification : CE,ISO9000

Place of Origin : China

MOQ : 1 set

Price : $7000-$12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 600 sets/year

Delivery Time : 50 days after your prepayment

Packaging Details : The whole transfer cart will be packed by the tarp, the parts will be packed by polywood case.

Product name : High Quality 20T Mold Transport Electric Trackless Intelligent Cart

Power supply : Storage battery

Material : steel

Load capacity : 1-100T

Running speed : 0-20m/min

Application : Factory ,warehouse and working line

Warranty : 1 year

Color : customized

OEM : Accepted

Contact Now

High Quality 20T Mold Transport Electric Trackless Intelligent Cart

Introduction of Electric Trackless Intelligent Cart

High quality 20t mold transport electric trackless intelligent cart is powered by battery to provide power for the electric system, thus providing power for the motor, driving the reducer to amplify the torque to provide power for the transmission system, so as to realize the trolley forward, backward, turn, start, stop and other operations.


High Quality 20t Mold Transport Electric Trackless Intelligent Cart


Description of Electric Trackless Intelligent Cart

The whole trackless intelligent cart is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

The driving and loading wheels of the trackless intelligent cart are solid polyurethane wheels.. It is wear-resistance, and has low maintain cost.
The functions of the ttrackless intelligent cart including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.


Electric Trackless Intelligent Cart Working Scene Display

High Quality 20t Mold Transport Electric Trackless Intelligent Cart


Technical Parameters of Electric Trackless Intelligent Cart

Model BWP-30T
Rated Load(t) 30t
Impacted rated load(t) 32
structure of frame steel plates welded beam structure
Thickness of the steel plate 12
Cart weight(t) 6
Wheel load(t) 7.7
Ground requirement cement ground
Table size(mm) 5000x2200
Height of the whole cart(mm) 650
Space from the ground(mm) 50
Wheels distance 1700
Axles distance 4300
Turning radius(mm) 4300
Turning type turning while driving without stop
Control method for turning control button
Turning structure mechanical
Wheel diameter Ф400/4
Wheel quality polyurethane wheels
Running speed(m/min) 0-12
Brake principle electric magnetic force
Operation method with wire or no wire
Charger motor's installation installed on cart
Function of charger motor automatic charging
Warning equipment sound and light lamp

Advantage of Electric Trackless Intelligent Cart

1. Operation, steering LED lights flashing, intermittent alarm sound. Start whistle warning.
2. Large color LCD screen is convenient to observe electric trackless intelligent cart status information such as speed and battery power.
3. Rocker type wireless remote control operation, remote control running speed.
4. Displacement direction function, easy to operate without reversing operation.

High Quality 20t Mold Transport Electric Trackless Intelligent Cart


Manufacturing of Electric Trackless Intelligent Cart


High Quality 20t Mold Transport Electric Trackless Intelligent Cart

Packaging And Transportation Of Electric Trackless Intelligent Cart


High Quality 20t Mold Transport Electric Trackless Intelligent Cart

Our customers


High Quality 20t Mold Transport Electric Trackless Intelligent Cart


After-sale service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

  • 16 hours engineering service and 24 hours internet service for our customers.

  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

  • High Quality 20t Mold Transport Electric Trackless Intelligent Cart
