Heavy Duty Plant Motorized Handling Inter Bay Transport Cross Bay Rail Truck Trolleys
Cross Bay Rail Truck Introduction
Heavy Duty Plant Motorized Handling Inter Bay Transport Cross Bay Rail Truck Trolleys are powered by the sliding line,is conducts AC 380V sliding wire directly into the AC electrical control system of the cross bay rail truck to let it star,stop,go forward,backward and so on.
The cross bay rail trucks are powered by the busbar. The busbar conducts AC 380V directly into the electrical control system of the cross bay rail truck, then the motor drives the reducer to let the wheel of the trolley start, stop, go forward and backward and so on. The trolley is powered by busbar which is laid in the trench or along the wall.Installation position need to desinged as per client actual application need.
Advantage of Cross Bay Rail Truck
Busbar powered, which supplies electricity to the cross bay rail truck
Traveling on track/rails
Lower truck height
Wireless remote control & push button pendant
Running on track
With hydraulic lifting and dumping system
Capacity range: 1T to 300T
Easy operate
E-stop, bumper, automatic stop, etc
Cross Bay Rail Truck Safe Device Show
Parameter of Cross Bay Rail Truck
| Model | KPC-8T |
| Rated Load(t) | 8 |
| Table size(mm) | 2000*1500*450 |
| Wheel Base(mm) | 1200 |
| Rail Gauge(mm) | 1200 |
| Wheel Diameter(mm) | Ф250 |
| Wheel Quantity(Pcs) | 4 |
| Ground Clearance(mm) | 50 |
| Running Speed(m/min) | 25 |
| Motor Power(Kw) | 1 |
| Max Wheel Load(KN) | 14.4 |
| Reference Weight(t) | 3 |
| Recommended Rail Model | P24 |
Cross Bay Rail Truck Application
The Heavy Duty Plant Motorized Handling Inter Bay Transport Cross Bay Rail Truck Trolleys can be widely applied in many fields, such as steel industries (steel coil, hot metal ladle, dies, molds, steel pipes, steel pates, steel bars and other steel parts transport), ship industries, petroleum industries, painting industries, precast concrete factories, quarry plants, transformer plants, turbine plants, paper making plants, coking plants, boiler plants, power station, textile plants, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.
Customer Visit
Remark:
For Heavy Duty Plant Motorized Handling Inter Bay Transport Cross Bay Rail Truck Trolleys, we can customized as per the following demand:
1. Speed variable
2.Table size and load capacity
3.For part brand choice: SEW motor, SEW gearbox, ABB electrical, Sweden remote control, SKF, FAG bearing,ABB VFD
4.Lifting, dumping function can be added
5. Safe device: rail limit switch, obstable detecting device, buffer, warning light etc
6.Automation function: promixity switch can stop at fixed point, PLC control etc.
|
|

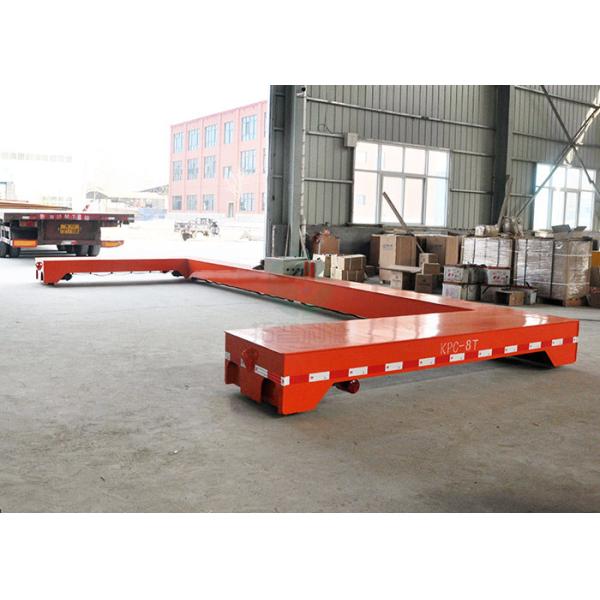

Heavy Duty Plant Motorized Handling Inter Bay Transport Cross Bay Rail Truck Trolleys Images
|
