,50t emergency-stop button towed cable rail guided steel coil transfer wagon for steel plant
Steel Coil Transfer Wagon Introduce

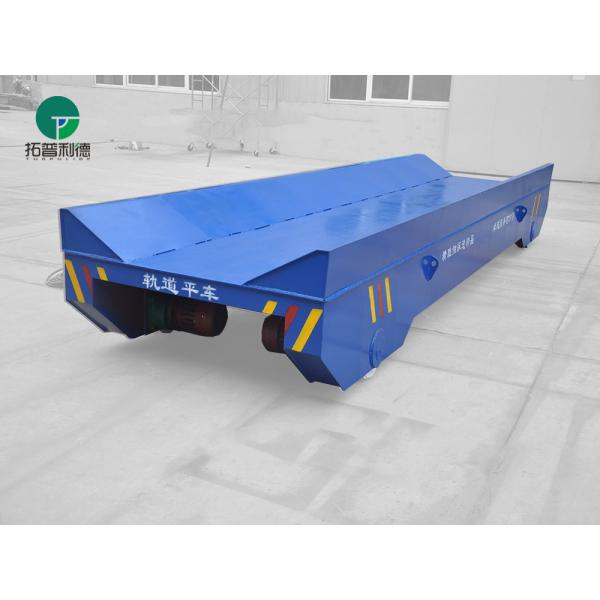

The rail guided steel coil transfer wagon is normally designed with V-decks to handle and transport coils and rolls. It is capable of handling heavy loads up to 500 tons. The material handling transfer wagon is a more cost-effective solution to transport heavy loads in your facility as compared to other equipment like fork lift truck. It makes the big job easy, safe and efficient for you. Our transfer carts can be customized to accommodate your load transportation and application requirements.
Advantage of steel coil transfer wagon
Safe and environment friendly
Big starting power
Small impact to the gear reducer
No restriction of the running distance
Can running on s-shape rail, arc-shape rails
Has no limit on working distance
Anti-explosion, anti-high temperature
Long lifetime
Steel Coil Transfer Wagon Parts
Parameter of steel coil transfer wagon
| Model | KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
Steel Coil Transfer Wagon Application
The steel coil transfer wagon can be applied in the following scopes:
Die handling – Portable machine base – Assembly mount – Metal coil transporter – Heavy equipment transporter with lift deck – Structural steel transporter – Shuttle cart for pipe – Precast concrete production cart – Portable base for jib arm with spreader beam
About Us
Xinxiang New Leader Machinery Manufcturing Co., Ltd is a high-end equipment research and development and manufacturing of a scientific and technological production-oriented enterprise. At present, the main product area is material transfer cart research and development and manufacturing, including independent innovation and practical application of seven major series of products, and has obtained CE certification including the European Union.
