1-300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With V-Deck

Name: 1300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With VDeck
Brand: topleader
Price: 7000 USD

Wholesale 1-300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With V-Deck from china suppliers

Brand Name : topleader

Model Number : KPX

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : $7000-$12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 600sets/year

Delivery Time : 30-40 days after your prepayment

Packaging Details : The whole copper coil handling vehicle will be packed by the tarp, the parts will be packed by polywood case.

Product name : 1-300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With V-Deck

Material : steel

Power supply : Storage battery

Application : Factory ,warehouse and working line

Load Capacity : 1-500ton

Running speed : 0-20m/min

Warranty : 1 year

Color : can customized

Size : customized

Key Words : Steerable Copper Coil Handling Vehicle

Contact Now

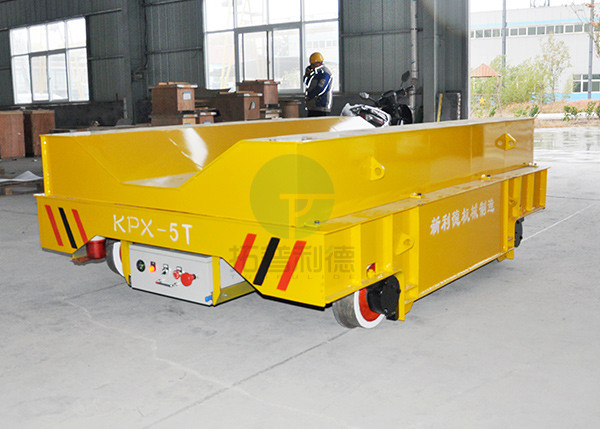

1-300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With V-Deck

Working Principle of Steerable Copper Coil Handling Vehicle

KPX Series copper coil handling vehicle are battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the carts, for example, start, stop, go forward and backward, adjust the speed and so on.. The batteries need maintenance once a regular time. The lifetime of the batteries is about 3 - 5 years. The using time after once charge is limited.

Main Parts of Steerable Copper Coil Handling Vehicle

Application of Steerable Copper Coil Handling Vehicle

This kind of copper coil handling vehicle is commonly applied in factory or warehouse to transfer plastic pipes, coils or steel coils.
In order to security, the V-frame is added on the platform of the copper coil handling vehicle is protect the coils falling down during transportation.

Carry loads along assembly lines;
transfer material from one work station to the next;
store and transport an entire shift worth of production.
They can even be used as a stable yet moveable machine base.
Can run between two perpendicular tracks or L-shape track or S-shape track or curved track.

1-300Ton Pipe Factory Transport Steerable Copper Coil Handling Vehicle Powered Drivable Transfer Cart With V-Deck

Technical Parameters of Steerable Copper Coil Handling Vehicle

Model		KPX-2T	KPX-10T	KPX-20T	KPX-30T	KPX-50T	KPX-150T
Rated load (T)		2	10	20	30	50	150
Table size	length(L)	2000	3600	4000	4500	5500	10000
	Width(W)	1500	2000	2200	2200	2500	3000
	Height(H)	450	500	550	600	650	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600
Wheel Quantity		4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75
Running speed (m/min)		0-25	0-25	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.6	2.2	3.5	5	15
Running Time When Full Load(Hours)		4.32	4.8	4	3.5	3.3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	265.2
Reference Weight (t)		2.8	4.2	5.9	6.8	8	26.8
Recommended Rail Model		P15	P18	P24	P38	P43	QU100

Manufacturing of Steerable Copper Coil Handling Vehicle

Delivery of Steerable Copper Coil Handling Vehicle
